FCL型彈性套柱銷聯軸器

??技術服務　
?0317-8315406 0317-8315046

?訂購傳真　
?0317-8315248

　產品詳細參數: 點擊:660次

Summary
Flexible Couplings Model FCLis widely used for its compact designing,easy installation,convenient maintenance,small size and light weight.As long as the relative displacement between shafts is kept within the specified tolerance,B couplings will operate the best function and have a longer working life.Thus it is greatly demanded in medium and minor power transmission systems driven by moters,such as speed reducers,hoists,compressos,conveyers,spinning and weaving machines and ball mills. TK 彈性塊式聯軸器
Permittable relative displacement:
Radial displacement:0.2~0.6mm
Angle displacement:0°30′~1°30′

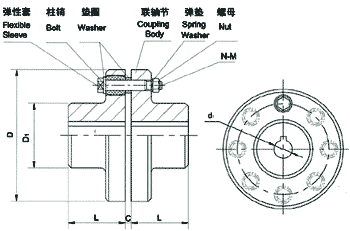

外形尺寸參數 Size chart & Parameter
概述
FCL型彈性套柱銷聯軸器的特點是結構簡單，安裝方便，更換容易，尺寸小，重量輕，因而得到廣泛使用，如若安裝調整后能保持兩軸相對位移量在規定的范圍內，則聯軸器會有滿意的使用性能和較長的工作壽命。因此能廣泛用于載荷不大，由電動機驅動的各種中、小功率傳動軸系中，如減速機、起重機、壓縮機、輸送機、紡織機、卷揚機、球磨機等。
彈性套柱銷聯軸器的許用相對位移：徑向位移：0.2~0.6mm 角位移：0°30′~1°30′

型號 Type	許用轉矩 Max torque N.m	許用轉速 Max speed r/min	D	D 1	d 1	L	C	n-M	重量 kg
FCL90	4	4000	90	35.5	11	28	3	4-M8×50	1.7
FCL100	10	4000	100	40	11	35.5	3	4-M10×56	2.3
FCL112	16	4000	112	45	13	40	3	4-M10×56	2.8
FCL125	25	4000	125	50	13	45	3	4-M12×64	4.0
FCL140	50	4000	140	63	13	50	3	6-M12×64	5.4
FCL160	110	4000	160	80	15	56	3	8-M12×64	8.0
FCL180	157	3500	180	90	15	63	3	8-M12×64	10.5
FCL200	245	3200	200	100	21	71	4	8-M20×85	16.2
FCL224	392	2850	224	112	21	80	4	8-M20×85	21.3
FCL220	618	2550	250	125	25	90	4	8-M24×110	31.6
FCL280	980	2300	280	140	34	100	4	8-M24×116	44.0
FCL315	1568	2050	315	160	41	112	4	10-M24×116	57.7
FCL355	2450	1800	355	180	60	125	5	8-M30×50	89.5
FCL400	3920	1600	400	200	60	125	5	10-M30×150	113
FCL450	6174	1400	450	224	65	140	5	12-M30×150	145
FCL560	9800	1150	560	250	85	160	5	14-M30×150	229
FCL630	15680	1000	630	280	95	180	5	18-M30×150	296
